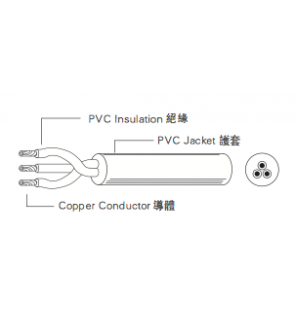

| Conductor | Insulation | Jacket | ||||
|---|---|---|---|---|---|---|
| AWG Size | Sectional Area (mm2) | Construction (No./mm) | Nom. Thick. (mm) | Nom. Diam. (mm) | Nom. Thick (mm) | Nom. Diam. (mm) |
| 2 | 0.5 | 29 / 0.15 | 0.5 | 1.95 | 0.6 | 5.2 |
| 2 | 0.5 | 29 / 0.15 | 0.5 | 1.95 | 0.6 | 3.25 x 5.20 |
| 2 | 0.75 | 43 / 0.15 | 0.5 | 2.15 | 0.6 | 5.6 |
| 3 | 0.75 | 43 / 0.15 | 0.5 | 2.15 | 0.6 | 3.60 x 5.75 |
| 3 | 0.5 | 29 / 0.15 | 0.5 | 1.95 | 0.6 | 5.5 |
| 3 | 0.75 | 43 / 0.15 | 0.5 | 2.15 | 0.6 | 5.9 |
