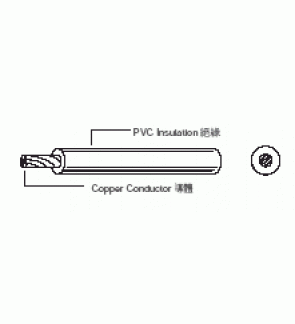

60227 IEC 05 (BV) - 300 / 500V FLEXIBLE CORD

Standard: GB 5023
Temp. (Max): 70℃
90℃ (BV-90, RV-90)
Voltage: As Specified

Conductor		Insulation
Sectional Area (mm2)	Construction (No./mm)	Nom. Thick. (mm)	Nom. Diam. (mm)
0.5	1 / 0.8	0.6	2.1
0.75	1 / 0.98, 7 / 0.37	0.6	2.25, 2.30
1	1 / 1.13, 7 / 0.43	0.6	2.40, 2.45

Marking:CCC A004278 60227 IEC 05 (BV)-300 / 500V 1Xxx mm² CHAU'S
