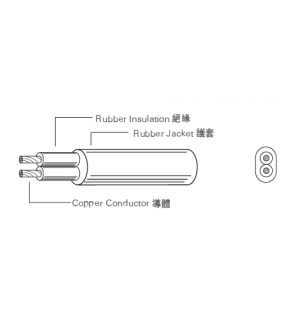

YZB /YZWB (ORDINARY DUTY FLAT RUBBER CABLE)

Standard: JB 8735-98
Rating: 60℃, 300V / 500V

No. of Conductor	Conductor		Insulation		Jacket
	Sectional Area (mm2)	Construction (No./mm)	Nom. Thick. (mm)	Nom. Diam. (mm)	Nom. Thick (mm)	Nom. Diam. (mm)
2	0.75	43 / 0.150	0.60	2.35	0.80	4.6 x 6.6
2	1.00	32 / 0.200	0.60	2.35	1.10	5.0 x 7.2
2	1.50	30 / 0.253	0.80	3.20	1.20	6.0 x 8.7
2	2.50	50 / 0.253	0.90	3.90	1.40	7.0 x 10.4
2	4.00	126 / 0.200	1.00	4.80	1.20	8.1 x 12.1
2	6.00	85 / 0.300	1.00	5.40	1.30	9.0 x 13.5
3	0.75	43 / 0.150	0.60	2.35	1.00	4.8 x 9.2
3	1.00	32 / 0.200	0.60	2.55	1.10	5.0 x 9.8
3	1.50	30 / 0.253	0.80	3.20	1.20	6.0 x 12.1
3	2.50	50 / 0.253	0.90	3.90	1.40	7.0 x 14.5
3	4.00	126 / 0.200	1.00	4.80	1.20	8.1 x 16.9
3	6.00	85 / 0.300	1.00	5.40	1.30	9.0 x 19.0
4	0.75	43 / 0.150	0.60	2.35	1.00	4.8 x 12.7
4	1.00	32 / 0.200	0.60	2.55	1.10	5.0 x 13.5
4	1.50	30 / 0.253	0.80	3.20	1.20	6.2 x 16.7
4	2.50	50 / 0.253	0.90	3.90	1.40	7.3 x 19.8
4	4.00	126 / 0.200	1.00	4.80	1.20	8.3 x 22.9
4	6.00	85 / 0.300	1.00	5.40	1.30	9.2 x 25.6
5	0.75	43 / 0.150	0.60	2.35	1.00	5.0 x 16.4
5	1.00	32 / 0.200	0.60	2.55	1.10	5.3 x 17.4
5	1.50	30 / 0.253	0.80	3.20	1.20	6.2 x 21.0
5	2.50	50 / 0.253	0.90	3.90	1.40	7.5 x 25.1
5	4.00	126 / 0.200	1.00	4.80	1.20	8.5 x 29.0
5	6.00	85 / 0.300	1.00	5.40	1.30	9.5 x 32.5
6	0.75	43 / 0.150	0.60	2.35	1.00	5.0 x 18.8
6	1.00	32 / 0.200	0.60	2.55	1.10	5.5 x 20.3
6	1.50	30 / 0.253	0.80	3.20	1.20	6.5 x 24.6
6	2.50	50 / 0.253	0.90	3.90	1.40	7.7 x 29.4
6	4.00	126 / 0.200	1.00	4.80	1.50	8.80 x 34.0
6	6.00	85 / 0.300	1.00	5.40	1.70	10.0 x 38.1

Marking:CCC A004278 YZWB-300 / 500V No. X xxMM² CHAU'S CQC 2002010104011357 JB8735-98
