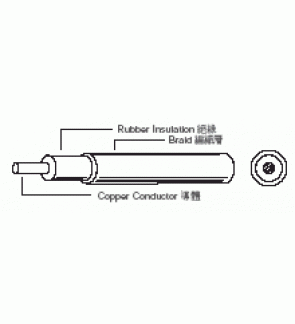

| Conductor | Insulation | Overall Braid | ||
|---|---|---|---|---|
| Sectional Area (mm2) | Construction (No./mm) | Nom. Thick. (mm) | Nom. Diam. (mm) | Nom. Diam. (mm) |
| 0.3 | 17 / 0.15 | 0.6 | 2.05 | 2.60 |
| 0.4 | 23 / 0.15 | 0.6 | 2.15 | 2.80 |
| 0.5 | 29 / 0.15 | 0.6 | 2.25 | 2.70 |
| 0.75 | 43 / 0.15 | 0.6 | 2.45 | 3.10 |
| 1 | 32 / 0.2 | 0.6 | 2.65 | 3.30 |
| 1.5 | 48 / 0.2 | 0.6 | 3.25 | 4.10 |
| 2.5 | 77 / 0.2 | 0.8 | 3.8 | 4.60 |
| 4 | 126 / 0.2 | 0.8 | 4.4 | 5.30 |
