| No. of Conductor | Conductor | Insulation | Jacket | |||
|---|---|---|---|---|---|---|
| Sectional Area (mm2) | Construction (No./mm) | Nom. Thick. (mm) | Nom. Diam. (mm) | Nom. Thick (mm) | Nom. Diam. (mm) | |
| 2 | 0.75 | 43 / 0.15 | 0.6 | 2.35 | 0.8 | 6.3 |
| 2 | 1 | 32 / 0.2 | 0.6 | 2.55 | 0.8 | 6.8 |
| 2 | 1.5 | 30 / 0.253 | 0.7 | 3 | 0.8 | 7.8 |

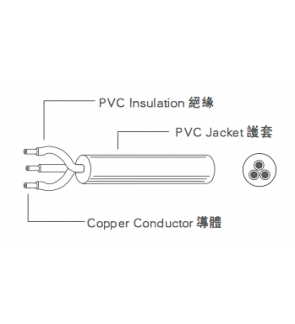

| 3 | 0.75 | 43 / 0.15 | 0.6 | 2.35 | 0.8 | 7 |
| 3 | 1 | 32 / 0.2 | 0.6 | 2.55 | 0.8 | 7.2 |
| 3 | 1.5 | 30 / 0.253 | 0.7 | 3 | 0.9 | 8.3 |
| 3 | 2.5 | 50 / 0.253 | 0.8 | 3.65 | 1.1 | 10.1 |
