UL 2464

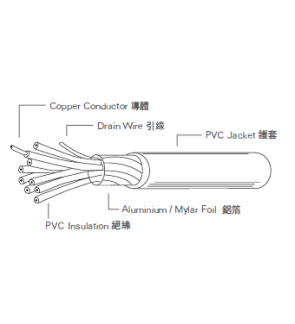

Standard Tinned or Bare Copper Conductor
Colour-coded PVC Insulation
Cores Shielded with Aluminium / Mylar Foil
24 AWG Tinned Copper Drain Wire
PVC Jacket

Rating: 80℃, 300V

Application:
Internal Wiring of External Interconnection of Electronic Equipment

Standard: UL 62, Subject 758

No. of Conductor Conductor Insulation Jacket
  AWG Size Sectional Area (mm2) Construction (No./mm) Nom. Thick. (mm) Nom. Diam. (mm) Nom. Thick (mm) Nom. Diam. (mm)
2 28 0.08 7/0.127 0.38 1.2 0.76 4.00
3 28 0.08 7/0.127 0.38 1.2 0.76 4.15
4 28 0.08 7/0.127 0.38 1.2 0.76 4.50
5 28 0.08 7/0.127 0.38 1.2 0.76 4.85
6 28 0.08 7/0.127 0.38 1.2 0.76 5.20
7 28 0.08 7/0.127 0.38 1.2 0.76 5.25
8 28 0.08 7/0.127 0.38 1.2 0.76 5.55
9 28 0.08 7/0.127 0.38 1.2 0.76 5.95
10 28 0.08 7/0.127 0.38 1.2 0.76 6.30
2 26 0.13 7 / 0.16 0.38 1.3 0.76 4.20
3 26 0.13 7 / 0.16 0.38 1.3 0.76 4.35
4 26 0.13 7 / 0.16 0.38 1.3 0.76 4.70
5 26 0.13 7 / 0.16 0.38 1.3 0.76 5.10
6 26 0.13 7 / 0.16 0.38 1.3 0.76 5.50
7 26 0.13 7 / 0.16 0.38 1.3 0.76 5.55
8 26 0.13 7 / 0.16 0.38 1.3 0.76 5.90
9 26 0.13 7 / 0.16 0.38 1.3 0.76 6.30
10 26 0.13 7 / 0.16 0.38 1.3 0.76 6.70
2 24 0.21 11 / 0.16 0.38 1.4 0.76 4.40
3 24 0.21 11 / 0.16 0.38 1.4 0.76 4.60
4 24 0.21 11 / 0.16 0.38 1.4 0.76 4.95
5 24 0.21 11 / 0.16 0.38 1.4 0.76 5.35
6 24 0.21 11 / 0.16 0.38 1.4 0.76 5.80
7 24 0.21 11 / 0.16 0.38 1.4 0.76 5.85
8 24 0.21 11 / 0.16 0.38 1.4 0.76 6.20
9 24 0.21 11 / 0.16 0.38 1.4 0.76 6.65
10 24 0.21 11 / 0.16 0.38 1.4 0.76 7.10
2 22 0.33 17 / 0.16 0.38 1.55 0.76 4.70
3 22 0.33 17 / 0.16 0.38 1.55 0.76 4.95
4 22 0.33 17 / 0.16 0.38 1.55 0.76 5.40
5 22 0.33 17 / 0.16 0.38 1.55 0.76 5.85
6 22 0.33 17 / 0.16 0.38 1.55 0.76 6.30
7 22 0.33 17 / 0.16 0.38 1.55 0.76 6.80
8 22 0.33 17 / 0.16 0.38 1.55 0.76 7.30
9 22 0.33 17 / 0.16 0.38 1.55 0.76 7.85
10 22 0.33 17 / 0.16 0.38 1.55 0.76 8.35
2 20 0.52 21 / 0.18 0.38 1.75 0.76 5.25
3 20 0.52 21 / 0.18 0.38 1.75 0.76 5.50
4 20 0.52 21 / 0.18 0.38 1.75 0.76 5.95
5 20 0.52 21 / 0.18 0.38 1.75 0.76 6.45
6 20 0.52 21 / 0.18 0.38 1.75 0.76 7.00
7 20 0.52 21 / 0.18 0.38 1.75 0.76 7.55
8 20 0.52 21 / 0.18 0.38 1.75 0.76 8.10
9 20 0.52 21 / 0.18 0.38 1.75 0.76 8.65
10 20 0.52 21 / 0.18 0.38 1.75 0.76 9.20
2 18 0.82 41 / 0.16 0.38 2 0.76 5.60
3 18 0.82 41 / 0.16 0.38 2 0.76 5.85
4 18 0.82 41 / 0.16 0.38 2 0.76 6.50
5 18 0.82 41 / 0.16 0.38 2 0.76 7.00
6 18 0.82 41 / 0.16 0.38 2 0.76 7.60
7 18 0.82 41 / 0.16 0.38 2 0.76 7.65
8 18 0.82 41 / 0.16 0.38 2 0.76 8.20
9 18 0.82 41 / 0.16 0.38 2 0.76 8.85
10 18 0.82 41 / 0.16 0.38 2 0.76 9.45
2 16 1.31 26/0.253 0.38 2.35 0.76 6.30
3 16 1.31 26/0.253 0.38 2.35 0.76 6.70
4 16 1.31 26/0.253 0.38 2.35 0.76 7.30
5 16 1.31 26/0.253 0.38 2.35 0.76 8.05
6 16 1.31 26/0.253 0.38 2.35 0.76 8.75
7 16 1.31 26/0.253 0.38 2.35 0.76 9.50
8 16 1.31 26/0.253 0.38 2.35 0.76 10.25
9 16 1.31 26/0.253 0.38 2.35 0.76 11.05
10 16 1.31 26/0.253 0.38 2.35 0.76 11.80
Marking:AWM 2464 VW-1 80℃ E114082 AWG Size 300V CHAU'S
