Strandard Copper
Rating :
60℃ , 75℃, 80℃, 90℃, or 105℃, 300V
Application :
Internal Wiring or External Interconnection of Electronic Equipment
Size Range : 18-10 AWG
Standard :
Appliance Wiring Material, UL758
Flexible Cord UL 62

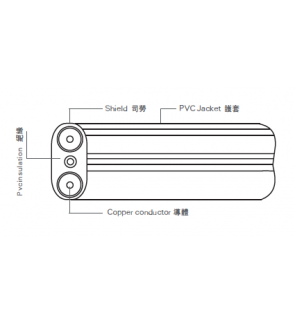

| Conductor | Insulation | Shield | Jacket | ||||||
|---|---|---|---|---|---|---|---|---|---|
| AWG Size | Sectional Area (mm2) | Construction (No./mm) | Live / Neutral wire Nominal Thickness(mm) | Earth wire Nominal Thickness(mm) | Live / Neutral wire Nominal Diameter(mm) | Earth wire Nominal Diameter(mm) | Nom. Thick (mm) | Nom. Diam. (mm) | |
| #18/3C | 0.824 | 41/0.160 | 1.14 | 0.38 | 3.50 | 2.10 | 0.127/2/16/8 | 0.635 | 5.45x13.00 |
| #16/3C | 1.310 | 26/0.253 | 1.14 | 0.38 | 3.78 | 2.39 | 0.127/2/16/8 | 0.635 | 5.70x14.10 |
| #14/3C | 2.080 | 41/0.253 | 1.65 | 0.38 | 5.26 | 2.85 | 0.127/2/16/8 | 0.635 | 7.20x17.50 |
| #12/3C | 3.310 | 65/0.253 | 2.03 | 0.38 | 6.50 | 3.20 | 0.127/2/16/8 | 0.635 | 8.40x18.60 |
| #10/3C | 5.260 | 104/0.253 | 2.41 | 0.38 | 7.90 | 3.80 | 0.127/2/16/9 | 0.635 | 9.80x22.20 |
