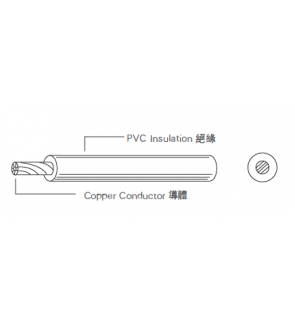

Solid or Standed, Tinned or Bare Copper Conductor
Rating : 80℃, 125V
Application :
Internal Wiring of Electrical Appliance
Size Range: 32-20 AWG
Standard: UL 62, Subject 758
| Conductor | Insulation | |||
|---|---|---|---|---|
| AWG Size | Sectional Area (mm2) | Construction (No./mm) | Nom. Thick. (mm) | Nom. Diam. (mm) |
| 32 | 0.03 | 7 / 0.08 | 0.23 | 0.80 |
| 30 | 0.05 | 11 / 0.08 | 0.23 | 0.85 |
| 28 | 0.08 | 7 / 0.127 | 0.23 | 0.95 |
| 26 | 0.13 | 7 / 0.16 | 0.23 | 1.05 |
| 24 | 0.21 | 11 / 0.16 | 0.23 | 1.15 |
| 22 | 0.33 | 17 / 0.16 | 0.23 | 1.30 |
| 20 | 0.52 | 21 / 0.18 | 0.23 | 1.50 |
