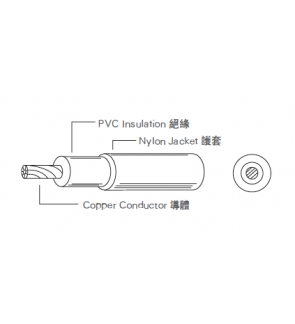

Conductor : Solid or Standed, Tinned or Bare Copper Conductor
Covering : Extruded Nylon
Rating : 90℃, 1000V
Application :
Internal Wiring of Appliances
Size Range: 26-12 AWG
Standard: UL 62, Subject 758
| Conductor | Insulation | Jacket | ||||
|---|---|---|---|---|---|---|
| AWG Size | Sectional Area (mm2) | Construction (No./mm) | Nom. Thick. (mm) | Nom. Diam. (mm) | Nom. Thick (mm) | Nom. Diam. (mm) |
| 26 | 0.130 | 7 / 0.160 | 0.38 | 1.30 | 0.16 | 1.70 |
| 24 | 0.210 | 11 / 0.160 | 0.38 | 1.45 | 0.16 | 1.85 |
| 22 | 0.330 | 17 / 0.160 | 0.38 | 1.60 | 0.16 | 2.00 |
| 20 | 0.519 | 21 / 0.180 | 0.38 | 1.76 | 0.16 | 2.15 |
| 18 | 0.824 | 41 / 0.160 | 0.38 | 1.95 | 0.16 | 2.35 |
| 16 | 1.310 | 26/0.253 | 0.38 | 2.30 | 0.16 | 2.70 |
| 14 | 2.080 | 41/0.253 | 0.38 | 2.65 | 0.16 | 3.05 |
| 12 | 3.310 | 65/0.253 | 0.38 | 3.20 | 0.16 | 3.60 |
