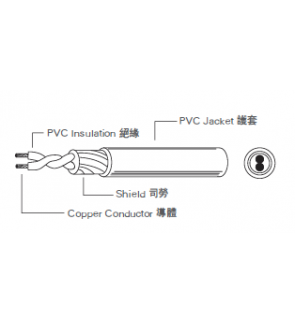

Rating: 80℃
Size Range: 30-20 AWG
| No. of Conductor | Conductor | Insulation | Shield | Jacket | ||||
|---|---|---|---|---|---|---|---|---|
| AWG Size | Sectional Area (mm2) | Construction (No./mm) | Nom. Thick. (mm) | Nom. Diam. (mm) | Nom. Thick (mm) | Nom. Diam. (mm) | ||
| 2 | 30 | 0.05 | 11 / 0.08 | 0.2 | 0.95 | 37/0.12 | 0.2 | 2.60 |
| 2 | 28 | 0.08 | 7 / 0.127 | 0.2 | 1.00 | 38/0.12 | 0.2 | 2.70 |
| 2 | 26 | 0.13 | 7 / 0.16 | 0.2 | 1.10 | 42/0.12 | 0.2 | 2.85 |
| 2 | 24 | 0.21 | 11 / 0.16 | 0.2 | 1.25 | 45/0.12 | 0.2 | 3.10 |
| 3 | 30 | 0.05 | 11 / 0.08 | 0.2 | 0.95 | 45/0.12 | 0.2 | 2.95 |
| 3 | 28 | 0.08 | 7 / 0.127 | 0.2 | 1.00 | 45/0.12 | 0.2 | 3.05 |
| 3 | 26 | 0.13 | 7 / 0.16 | 0.2 | 1.10 | 50/0.12 | 0.2 | 3.25 |
| 3 | 24 | 0.21 | 11 / 0.16 | 0.2 | 1.25 | 55/0.12 | 0.2 | 3.55 |
| 4 | 30 | 0.05 | 11 / 0.08 | 0.2 | 0.95 | 50/0.12 | 0.2 | 3.25 |
| 4 | 28 | 0.08 | 7 / 0.127 | 0.2 | 1.00 | 53/0.12 | 0.2 | 3.35 |
| 4 | 26 | 0.13 | 7 / 0.16 | 0.2 | 1.10 | 58/0.12 | 0.2 | 3.60 |
| 4 | 24 | 0.21 | 11 / 0.16 | 0.2 | 1.25 | 63/0.12 | 0.2 | 3.95 |
