Voltage: Not Specified
Temp(Max): 80℃
Size Range: 30-16 AWG
Standard: UL62, Subject 758

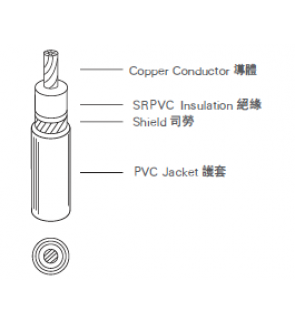

| Conductor | Insulation | Shield | Jacket | ||||
|---|---|---|---|---|---|---|---|
| AWG Size | Sectional Area (mm2) | Construction (No./mm) | Nom. Thick. (mm) | Nom. Diam. (mm) | Nom. Thick (mm) | Nom. Diam. (mm) | |
| 30 | 0.050 | 11 / 0.08 | 0.25 | 0.80 | 23/0.12 | 0.30 | 1.85 |
| 28 | 0.080 | 7 / 0.127 | 0.25 | 0.85 | 25/0.12 | 0.30 | 1.90 |
| 26 | 0.130 | 7 / 0.16 | 0.25 | 0.95 | 30/0.12 | 0.30 | 2.00 |
| 24 | 0.210 | 11 / 0.16 | 0.25 | 1.10 | 34/0.12 | 0.30 | 2.15 |
| 22 | 0.330 | 17 / 0.16 | 0.25 | 1.25 | 38/0.12 | 0.30 | 2.30 |
| 20 | 0.519 | 21 / 0.18 | 0.25 | 1.45 | 40/0.12 | 0.30 | 2.50 |
| 18 | 0.824 | 41 / 0.16 | 0.25 | 1.65 | 45/0.12 | 0.30 | 2.70 |
| 16 | 1.310 | 26 / 0.253 | 0.25 | 2.00 | 52/0.12 | 0.30 | 3.05 |
