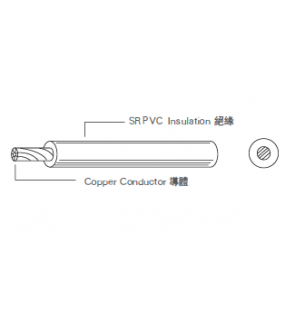

Solid Stranded, Tinned Or Bare Copper Conductor
Appliance Wiring Material, UL758
Rating : 80℃, 300V
Application: Internal Wiring In Electric Bookkeeping Accounting, Or Time-Recording Machines
Size Range: 30-14 AWG
| Conductor | Insulation | |||
|---|---|---|---|---|
| AWG Size | Sectional Area (mm2) | Construction (No./mm) | Nom. Thick. (mm) | Nom. Diam. (mm) |
| 30 | 0.050 | 11/0.080 | 0.33 | 1.00 |
| 28 | 0.080 | 7/0.127 | 0.33 | 1.10 |
| 26 | 0.130 | 7/0.160 | 0.33 | 1.20 |
| 24 | 0.210 | 11/0.160 | 0.33 | 1.30 |
| 22 | 0.330 | 17/0.160 | 0.33 | 1.45 |
| 20 | 0.519 | 21/0.180 | 0.33 | 1.65 |
| 18 | 0.824 | 41/0.160 | 0.33 | 1.90 |
| 16 | 1.310 | 26/0.253 | 0.33 | 2.20 |
