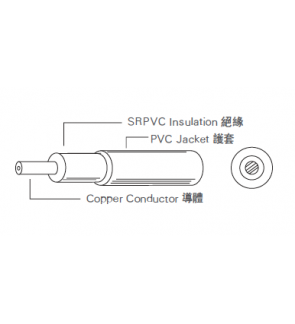

Constructor: Solid or Stranded, Tinned or Bare Copper
Rating: 80℃, 300V
Application: External or Internal Wiring of Electrical Equipment
Size Range: 30-16 AWG
Standard: UL 62, Subject 758
| Conductor | Insulation | Jacket | ||||
|---|---|---|---|---|---|---|
| AWG Size | Sectional Area (mm2) | Construction (No./mm) | Nom. Thick. (mm) | Nom. Diam. (mm) | Nom. Thick (mm) | Nom. Diam. (mm) |
| 30 | 0.050 | 11 / 0.08 | 0.23 | 0.85 | 0.76 | 2.45 |
| 28 | 0.080 | 7 / 0.127 | 0.23 | 0.90 | 0.76 | 2.50 |
| 26 | 0.130 | 7 / 0.16 | 0.23 | 1.00 | 0.76 | 2.60 |
| 24 | 0.210 | 11 / 0.16 | 0.23 | 1.15 | 0.76 | 2.70 |
| 22 | 0.330 | 17 / 0.16 | 0.23 | 1.28 | 0.76 | 2.85 |
| 20 | 0.519 | 21 / 0.18 | 0.23 | 1.46 | 0.76 | 3.05 |
| 18 | 0.824 | 41 / 0.16 | 0.23 | 1.95 | 0.76 | 3.50 |
| 16 | 1.310 | 26 / 0.253 | 0.23 | 2.00 | 0.76 | 3.60 |
