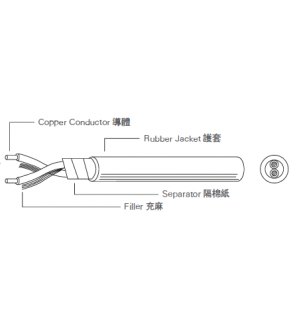

NON-OIL-RESISTANT HARD-SERVICE CORDS #14, 16, 18, SJ

Rating: 60℃ / 75℃ / 90℃ / 105℃, 300V

Standard: UL 62

No. of Conductor	Conductor			Insulation		Jacket
	AWG Size	Sectional Area (mm2)	Construction (No./mm)	Nom. Thick. (mm)	Nom. Diam. (mm)	Nom. Thick (mm)	Nom. Diam. (mm)
2	18	0.824	41/0.160	0.76	2.85	0.76	7.35
2	16	1.310	26/0.253	0.76	3.10	0.76	7.95
2	14	2.080	41/0.253	0.76	3.50	0.76	8.70
2	12	3.310	65/0.253	0.76	4.00	1.14	10.50
3	18	0.824	41/0.160	0.76	2.85	0.76	7.80
3	16	1.310	26/0.253	0.76	3.10	0.76	8.40
3	14	2.08	41/0.253	0.76	3.50	0.76	9.30
3	12	3.310	65/0.253	0.76	4.00	1.14	11.00
4	18	0.824	41/0.160	0.76	2.85	0.76	8.60
4	16	1.310	26/0.253	0.76	3.10	0.76	9.20
4	14	2.080	41/0.253	0.76	3.50	0.76	10.30
4	12	3.310	65/0.253	0.76	4.00	1.14	12.10
5	18	0.824	41/0.160	0.76	2.85	0.76	9.30
5	16	1.310	26/0.253	0.76	3.10	0.76	10.10
5	14	2.080	41/0.253	0.76	3.50	0.76	11.10
5	12	3.310	65/0.253	0.76	4.00	1.14	13.25
