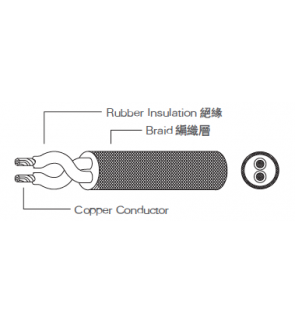

| No. of Conductor | Conductor | Insulation | Overall Braid | |||
|---|---|---|---|---|---|---|
| AWG Size | Sectional Area (mm2) | Construction (No./mm) | Nom. Thick. (mm) | Nom. Diam. (mm) | Nom. Diam. (mm) | |
| 2 | 18 | 0.824 | 41 / 0.16 | 0.76 | 2.80 | 6.20 |
| 2 | 16 | 1.310 | 65 / 0.16 | 0.76 | 3.05 | 6.80 |
| 3 | 18 | 0.824 | 41 / 0.16 | 0.76 | 2.80 | 6.60 |
| 3 | 16 | 1.310 | 65 / 0.16 | 0.76 | 3..05 | 7.20 |
