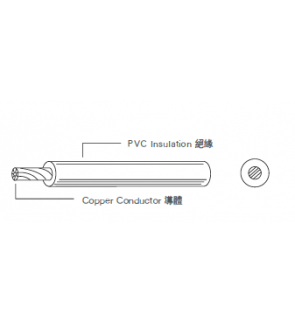

No. 44 AWG Min, Material Not Specified
Rating : 60℃ or 80℃, 30V
Application :
Internal Wiring of Class 2 Circuits of Electronic
or as Insulated Single In Jacketed Multiconductor Cables
Size Range : 32 -12 AWG
Standard : Applicance Wiring Material, UL 758
| Conductor | Insulation | |||
|---|---|---|---|---|
| AWG Size | AWG Size | Construction (No./mm) | Nom. Thick. (mm) | Nom. Diam. (mm) |
| 32 | 0.030 | 1/0.202 | 0.127 | 1.20 |
| 30 | 0.050 | 1/0.255 | 0.127 | 1.25 |
| 28 | 0.080 | 1/0.321 | 0.127 | 1.30 |
| 26 | 0.130 | 1/0.405 | 0.127 | 1.40 |
| 24 | 0.210 | 1/0.511 | 0.127 | 1.50 |
| 22 | 0.330 | 1/0.644 | 0.127 | 1.65 |
| 20 | 0.519 | 1/0.812 | 0.127 | 1.75 |
| 18 | 0.824 | 41/0.160 | 0.254 | 2.35 |
| 16 | 1.310 | 26/0.253 | 0.254 | 2.65 |
| 14 | 2.080 | 41/0.253 | 0.254 | 3.05 |
| 12 | 3.310 | 65/0.253 | 0.305 | 3.65 |
