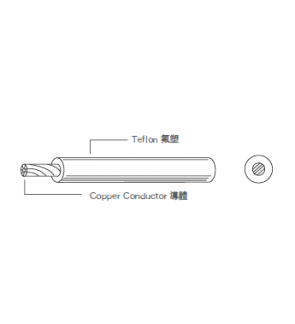

Solid or Standed Copper Conductor
Rating:
200℃, 300V (UL 1332)
150℃, 300V (UL 1333)
Application:
Internal Wiring of Electronic Equipment and Small Electrical Equipment
Size Range: 30 - 10 AWG
Standard: UL 62, Subject 758
| Conductor | Insulation | |||
|---|---|---|---|---|
| AWG Size | Sectional Area (mm2) | Construction (No./mm) | Nom. Thick. (mm) | Nom. Diam. (mm) |
| 30 | 0.05 | 11/0.08 / 1/0.253 | 0.33 | 1.30/1.25 |
| 28 | 0.08 | 7/0.127 1/0.32 | 0.33 | 1.35/1.30 |
| 26 | 0.13 | 1 / 0.404 | 0.33 | 1.40 |
| 24 | 0.2 | 1 / 0.511 | 0.33 | 1.50 |
| 22 | 0.33 | 1 / 0.643 | 0.33 | 1.65 |
| 20 | 0.52 | 1 / 0.813 | 0.33 | 1.80 |
| 18 | 0.82 | 1 / 1.02 | 0.33 | 2.00 |
| 16 | 1.31 | 1 / 1.29 | 0.33 | 2.25 |
| 14 | 2.08 | 1 / 1.63 | 0.33 | 2.60 |
| 12 | 3.31 | 1 / 2.05 | 0.33 | 3.05 |
| 10 | 5.26 | 1 / 2.588 | 0.33 | 3.30 |
