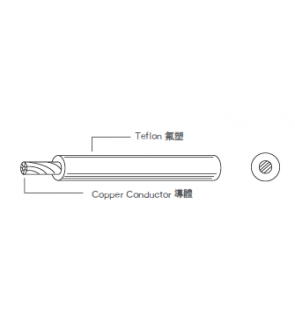

Solid or Standed Copper Conductor
Rating:
200℃, 600V (UL 1330)
150℃, 600V (UL 1331)
Application: Internal Wiring of Electronic Equipmet and Small Electrical Equipment
Size Range: 30 - 4/0 AWG
Standard: UL 62, Subject 758
| Conductor | Insulation | |||
|---|---|---|---|---|
| AWG Size | Sectional Area (mm2) | Construction (No./mm) | Nom. Thick. (mm) | Nom. Diam. (mm) |
| 30 | 0.05 | 11/0.08 1/0.253 | 0.51 | 1.35/1.30 |
| 28 | 0.08 | 7/0.127 1/0.32 | 0.51 | 1.45/1.35 |
| 26 | 0.13 | 1 / 0.404 | 0.51 | 1.45 |
| 24 | 0.2 | 1 / 0.511 | 0.51 | 1.55 |
| 22 | 0.33 | 1 / 0.643 | 0.51 | 1.70 |
| 20 | 0.52 | 1 / 0.813 | 0.51 | 1.85 |
| 18 | 0.82 | 1 / 1.02 | 0.51 | 2.05 |
| 16 | 1.31 | 1 / 1.29 | 0.51 | 2.30 |
| 14 | 2.08 | 1 / 1.63 | 0.51 | 2.70 |
| 12 | 3.31 | 1 / 2.05 | 0.51 | 3.10 |
| 10 | 5.26 | 1 / 2.588 | 0.51 | 3.60 |
