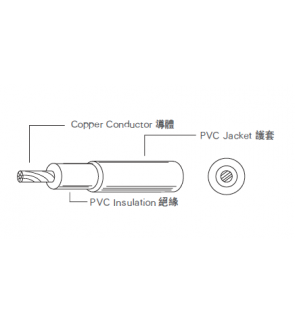

Solid or Stranded, Tinned or Bare Copper Conductor
Rating: 105℃, 300V
Application:
Internal Wiring For Electronic Equipment, Audio/ Video Equipment
Size Range :
(UL) 30 - 16 AWG
(CSA) 26 - 10 AWG
Standard: UL 62, Subject 758
| Conductor | Insulation | Jacket | ||||
|---|---|---|---|---|---|---|
| AWG Size | Sectional Area (mm2) | Construction (No./mm) | Nom. Thick. (mm) | Nom. Diam. (mm) | Nom. Thick (mm) | Nom. Diam. (mm) |
| 28 | 0.080 | 7 / 0.127 1 / 0.32 | 0.38 | 1.20 | 0.38 | 2.00 |
| 26 | 0.130 | 7 / 0.16 1 / 0.41 | 0.38 | 1.30 | 0.38 | 2.10 |
| 24 | 0.210 | 11 / 0.16 1 / 0.51 | 0.38 | 1.40 | 0.38 | 2.20 |
| 22 | 0.330 | 17 / 0.16 1 / 0.64 | 0.38 | 1.55 | 0.38 | 2.35 |
| 20 | 0.519 | 21 / 0.18 1 / 0.81 | 0.38 | 1.76 | 0.38 | 2.55 |
| 18 | 0.824 | 41 / 0.16 1 / 1.02 | 0.38 | 2.00 | 0.38 | 2.80 |
| 16 | 1.310 | 26 / 0.253 1 / 1.29 | 0.38 | 2.10 | 0.38 | 3.10 |
| 14 | 2.080 | 41 / 0.253 1 / 1.63 | 0.38 | 2.65 | 0.38 | 3.45 |
| 12 | 3.310 | 65 / 0.253 1 / 2.05 | 0.38 | 3.05 | 0.38 | 3.95 |
