Rating: 90℃/105℃,300V
Standard: UL62/CSA C22.2 No. 49
| No. of Conductor | Conductor | Insulation | Jacket | ||||
|---|---|---|---|---|---|---|---|
| AWG Size | Sectional Area (mm2) | Construction (No./mm) | Nom. Thick. (mm) | Nom. Diam. (mm) | Nom. Thick (mm) | Nom. Diam. (mm) | |

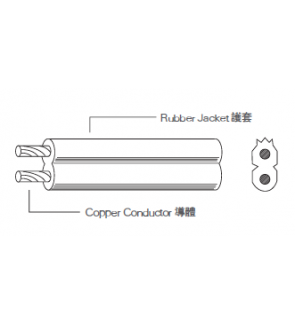

| 2 | 18 | 0.824 | 41/0.16 | - | - | 1.14 | 4.00x8.20 |
| 2 | 16 | 1.310 | 65/0.16 | - | - | 1.14 | 4.10x8.50 |

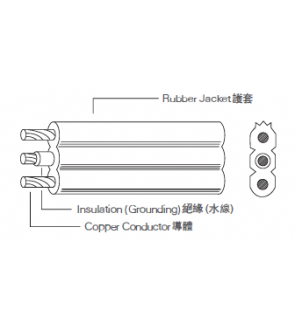

| 3 | 18 | 0.824 | 41/0.16 | 0.38 | 2.15 | 1.14 | 3.90x10.0 |
| 3 | 16 | 1.310 | 65/0.16 | 0.38 | 2.40 | 1.14 | 4.00x10.0 |
