UL STYLE: 20251 20097 TELECOMMUNICATION EQUIPMENT
MATERIAL
Jacket: PVC
Insulation: Polyester Elastomer (20097)
Polypropylen (20251)
Conductor:
32AWG - tinsel
Other - copper

SPECIFICATION
Conductor resistance: < 2.0Ω/m
Insulation resistance: >2.5MΩ.1k/t
Dielectric strength: 1500VAC
Plug pull force: 50N
Terminal crimping strength: 4.4lbs

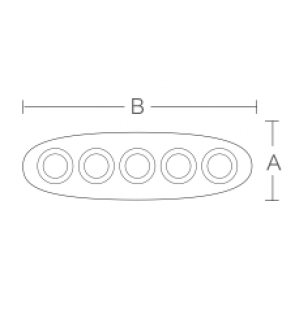

No. of Conductor Color a. Thick b. Thick

2 Red, Green 2.5mm 5.0mm
4 Black, Red, Green, Yellow 2.5mm 5.0mm
6 Write, Black, Red, Green, Yellow, Blue 2.5mm 7.0mm
8 Gray, White, Black, Red, Green, Yellow, Blue, Brown 2.5mm 9.0mm
