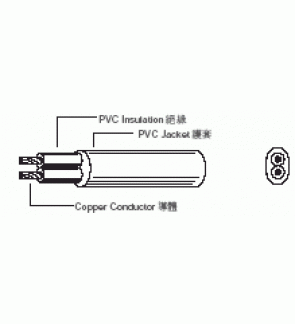

| No. of Conductor | Conductor | Insulation | Jacket | |||
|---|---|---|---|---|---|---|
| Sectional Area (mm2) | Construction (No./mm) | Nom. Thick. (mm) | Nom. Diam. (mm) | Nom. Thick (mm) | Nom. Diam. (mm) | |
| 2 | 0.75 | 30 / 0.18 | 0.6 | 2.4 | 0.6 | 4.5 x 6.6 |
| 2 | 1.25 | 50 / 0.18 | 0.6 | 2.75 | 0.6 | 4.9 x 7.4 |
| 2 | 2 | 41 / 0.25 | 0.6 | 3.15 | 0.6 | 5.3 x 8.0 |
