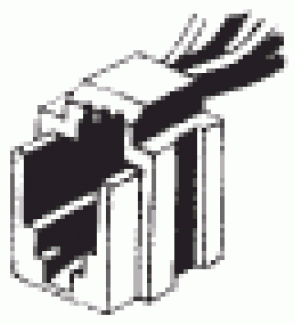

623 K6
SPECIFICATIONS:
Insulation Resistance 10MΩ
Dielectric Withstanding Voltage 1000 volts rms, 60Hz
Contact Resistance 20MΩ
Current Rating 1 1/2 amps
Retention 76N (17 lbs) between the JACK and PLUG
Crimp Tensile Strength 2.27 kg (5.0 lbs)
Mating Force 500 grams for 4 wire lead 750 grams for 6 wire lead 900 garms for 8 wire lead

MATERIAL:
Housing: ABS (94V-0)
Leads: AWG 26 compose of 7 strands tinned copper wire
Contact: 0.45mm (0.018') diameter phosphor bronze alloy
Plating: 15 micro inch minimum hard gold over nickel (30 or 50 micro inch minimum hard gold over nickel)
