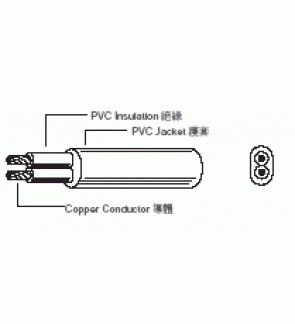

导体 |
絕緣 | 护套 | ||||
|---|---|---|---|---|---|---|
| 线号 | 线号 | 构造 (No./mm) | 厚度 (毫米) | 外径(毫米) | 厚度 | 外径(毫米） |
| 2 | 1.5 | 1 / 1.38, 7 / 0.52 | 0.7 | 2.80, 3.00 | 1.2 | 8.60, 8.90 |
| 2 | 2.5 | 1 / 1.78, 7 / 0.68 | 0.8 | 3.40, 3.70 | 1.2 | 9.80, 10.20 |
| 2 | 4 | 1 / 2.25, 7 / 0.85 | 0.8 | 3.85, 4.20 | 1.2 | 10.70, 11.20 |
| 2 | 6 | 1 / 2.76, 7 / 1.04 | 0.8 | 4.40, 4.80 | 1.2 | 11.70, 11.20 |
| 2 | 10 | 7 / 1.35 | 1 | 6.15 | 1.2 | 15.6 |
| 3 | 1.5 | 1 / 1.38, 7 / 0.52 | 0.7 | 2.80, 3.00 | 1.2 | 9.00, 9.40 |
| 3 | 2.5 | 1 / 1.78, 7 / 0.68 | 0.8 | 3.40, 3.70 | 1.2 | 10.30, 10.70 |
| 3 | 4 | 1 / 2.25, 7 / 0.85 | 0.8 | 3.85, 4.20 | 1.2 | 11.30, 11.80 |
| 3 | 6 | 1 / 2.76, 7 / 1.04 | 0.8 | 4.40, 4.80 | 1.4 | 12.80, 13.50 |
| 3 | 10 | 7 / 1.35 | 1 | 6.15 | 1.4 | 16.3 |
| 4 | 1.5 | 1 / 1.38, 7 / 0.52 | 0.7 | 2.80, 3.00 | 1.2 | 10.20, 10.70 |
| 4 | 2.5 | 1 / 1.78, 7 / 0.68 | 0.8 | 3.40, 3.85 | 1.2 | 11.60, 12.90 |
| 4 | 4 | 1 / 2.25, 7 / 0.85 | 0.8 | 3.85, 4.20 | 1.4 | 13.00, 13.90 |
| 4 | 6 | 1 / 2.76, 7 / 1.04 | 0.8 | 4.40, 4.80 | 1.4 | 14.80, 15.90 |
| 4 | 10 | 1 / 3.57, 7 / 1.35 | 1 | 5.70, 6.15 | 1.4 | 17.90, 19.00 |
| 5 | 1.5 | 1 / 1.38, 7 / 0.52 | 0.7 | 2.80, 3.00 | 1.2 | 10.90, 9.00 |
| 5 | 2.5 | 1 / 1.78, 7 / 0.68 | 0.8 | 3.40, 3.85 | 1.2 | 12.60, 13.80 |
| 5 | 4 | 1 / 2.25, 7 / 0.85 | 0.8 | 3.85, 4.20 | 1.4 | 14.60, 15.60 |
| 5 | 6 | 1 / 2.76, 7 / 1.04 | 0.8 | 4.40, 4.80 | 1.4 | 16.10, 17.20 |
| 5 | 10 | 1 / 3.57, 7 / 1.35 | 1 | 5.70, 6.15 | 1.4 | 19.60, 20.90 |
