| No. of Conductor | Conductor | Insulation | Jacket | Max Voltage (V) | Amp. Rating | Max Temp. (℃) | |||
|---|---|---|---|---|---|---|---|---|---|
| Sectional Area (mm2) | Construction (No./mm) | Nom. Thick. (mm) | Nom. Diam. (mm) | Nom. Thick (mm) | Nom. Diam. (mm) | ||||

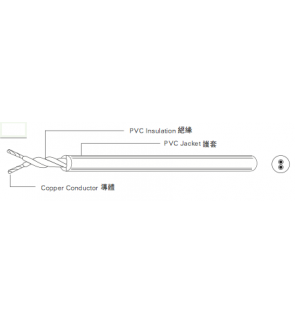

| 2 | 0.75 | 43 / 0.15 | 0.6 | 2.35 | 0.8 | 6.45 | 250 / 440 | 7.5A | 75 / 90 |
| 2 | 1 | 32 / 0.2 | 0.6 | 2.55 | 0.8 | 6.8 | 250 / 440 | 10A | 75 / 90 |

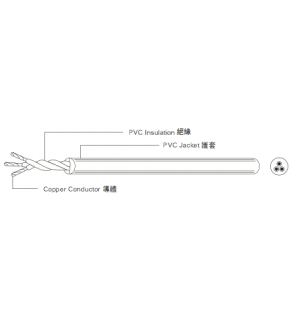

| 3 | 0.75 | 43 /0.15 | 0.6 | 2.35 | 0.8 | 6.8 | 250 / 440 | 7.5A | 75 / 90 |
| 3 | 1 | 32 / 0.2 | 0.6 | 2.55 | 0.8 | 7.15 | 250 / 440 | 10A | 75 / 90 |
| 3 | 1.5 | 32 / 0.253 | 0.7 | 3.05 | 0.9 | 8.5 | 250 / 440 | 15A | 75 / 90 |
