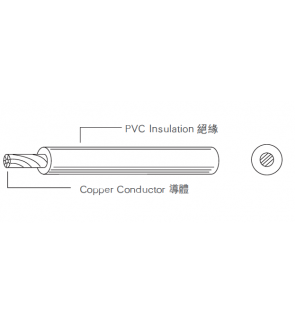

Conductor : Solid or Standed, Tinned or Bare Copper Conductor
Insulation : 0.40mm
Rating : 80℃, 300V
Application : Internal Wiring of Appliances
Size Range: 26-16 AWG
Standard: UL 62, Subject 758
| Conductor | Insulation | |||
|---|---|---|---|---|
| AWG Size | Sectional Area (mm2) | Construction (No./mm) | Nom. Thick. (mm) | Nom. Diam. (mm) |
| 26 | 0.130 | 7 / 0.160 | 0.41 | 1.40 |
| 24 | 0.210 | 11 / 0.160 | 0.41 | 1.50 |
| 22 | 0.330 | 17 / 0.160 | 0.41 | 1.65 |
| 20 | 0.519 | 21 / 0.180 | 0.41 | 2.00 |
| 18 | 0.824 | 41 / 0.160 | 0.41 | 2.10 |
| 16 | 1.310 | 26/0.253 | 0.41 | 2.40 |
