UL 2733

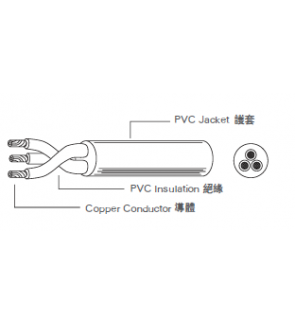

Solid or Stranded, Tinned or Bare Copper Conductor
Multiple Conductors

Rating: 105℃, 600V

Application:
Internal Wiring of Electrical Fans

Standard: UL 62, Subject 758

No. of Conductor	Conductor			Insulation		Jacket
	AWG Size	Sectional Area (mm2)	Construction (No./mm)	Nom. Thick. (mm)	Nom. Diam. (mm)	Nom. Thick (mm)	Nom. Diam. (mm)
2	28	0.08	7/0.127 1/0.32	0.76	1.95	0.38	4.75
3	28	0.08	7/0.127 1/0.32	0.76	1.95	0.38	5.05
4	28	0.08	7/0.127 1/0.32	0.76	1.95	0.38	5.60
5	28	0.08	7/0.127 1/0.32	0.76	1.95	0.38	6.20
6	28	0.08	7/0.127 1/0.32	0.76	1.95	0.38	6.80
7	28	0.08	7/0.127 1/0.32	0.76	1.95	0.38	7.45
2	26	0.13	7/0.16 1/0.41	0.76	2.05	0.38	4.95
3	26	0.13	7/0.16 1/0.41	0.76	2.05	0.38	5.30
4	26	0.13	7/0.16 1/0.41	0.76	2.05	0.38	5.85
5	26	0.13	7/0.16 1/0.41	0.76	2.05	0.38	6.45
6	26	0.13	7/0.16 1/0.41	0.76	2.05	0.38	7.05
7	26	0.13	7/0.16 1/0.41	0.76	2.05	0.38	7.75
2	24	0.21	11/0.16 1/0.41	0.76	2.15	0.38	5.15
3	24	0.21	11/0.16 1/0.41	0.76	2.15	0.38	5.50
4	24	0.21	11/0.16 1/0.41	0.76	2.15	0.38	6.10
5	24	0.21	11/0.16 1/0.41	0.76	2.15	0.38	6.75
6	24	0.21	11/0.16 1/0.41	0.76	2.15	0.38	7.40
7	24	0.21	11/0.16 1/0.41	0.76	2.15	0.38	6.75
2	22	0.33	17/0.16 1/0.64	0.76	2.3	0.38	5.45
3	22	0.33	17/0.16 1/0.64	0.76	2.3	0.38	5.85
4	22	0.33	17/0.16 1/0.64	0.76	2.3	0.38	6.45
5	22	0.33	17/0.16 1/0.64	0.76	2.3	0.38	7.15
6	22	0.33	17/0.16 1/0.64	0.76	2.3	0.38	7.85
7	22	0.33	17/0.16 1/0.64	0.76	2.3	0.38	8.60
2	20	0.52	21/0.18 1/0.81	0.76	2.5	0.38	5.85
3	20	0.52	21/0.18 1/0.81	0.76	2.5	0.38	6.30
4	20	0.52	21/0.18 1/0.81	0.76	2.5	0.38	6.95
5	20	0.52	21/0.18 1/0.81	0.76	2.5	0.38	7.70
6	20	0.52	21/0.18 1/0.81	0.76	2.5	0.38	8.45
7	20	0.52	21/0.18 1/0.81	0.76	2.5	0.38	9.30
2	18	0.82	41/0.16 1/1.02	0.76	2.75	0.38	6.35
3	18	0.82	41/0.16 1/1.02	0.76	2.75	0.38	6.80
4	18	0.82	41/0.16 1/1.02	0.76	2.75	0.38	7.55
5	18	0.82	41/0.16 1/1.02	0.76	2.75	0.38	8.40
6	18	0.82	41/0.16 1/1.02	0.76	2.75	0.38	9.20
7	18	0.82	41/0.16 1/1.02	0.76	2.75	0.38	10.10

Marking:E114082 AWM 2733 xx AWG 600V 105℃ FT2 CHAU'S
