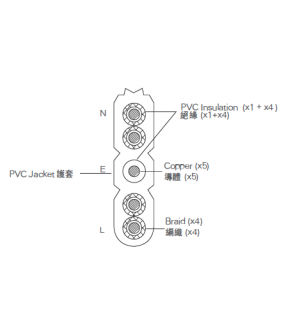

Stranded, Tinned or Bare Copper Conductor
Rating: 105℃, 300V
Application:
Use in LCDI Devices
Size Range: 18-10 AWG
Standard: UL 62, Subject 758
| Conductor | Insulation | Shield | Jacket | ||||
|---|---|---|---|---|---|---|---|
| AWG Size | Sectional Area (mm2) | Construction (No./mm) | Nom. Thick. (mm) | Nom. Diam. (mm) | Nom. Thick (mm) | Nom. Diam. (mm) | |
| 18 | 0.824 | 41 / 0.160 | 0.76 | 2.80 | 0.12 / 5 / 24 | 0.76 | 4.9 x 19.2 |
| 16 | 1.310 | 26 / 0.253 | 0.76 | 3.10 | 0.12 / 6 / 24 | 0.76 | 5.2 x 21.1 |
| 14 | 2.080 | 41 / 0.253 | 0.76 | 3.50 | 0.12 / 6 / 24 | 1.27 | 6.59 x 24.6 |
