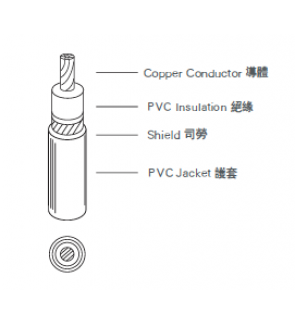

Solid orStranded,Tinned or Bare
Copper Conductor
Rating: 80℃, 300V
Application:
Internal Wiring of Electrical & Electronic Equipment Internal Wiring of Medical
or Dental Equipment
Size Range: 30- 4/0AWG
Standard: UL 62, Subject 758
| Conductor | Insulation | Shield | Jacket | ||||
|---|---|---|---|---|---|---|---|
| AWG Size | Sectional Area (mm2) | Construction (No./mm) | Nom. Thick. (mm) | Nom. Diam. (mm) | Nom. Thick (mm) | Nom. Diam. (mm) | |
| 30 | 0.05 | 11 / 0.08 | 0.41 | 1.1 | 34/0.12 | 0.41 | 2.15 |
| 28 | 0.08 | 7 / 0.127 | 0.41 | 1.2 | 35/0.12 | 0.41 | 2.25 |
| 26 | 0.13 | 7 / 0.16 | 0.41 | 1.3 | 38/0.12 | 0.41 | 2.35 |
| 24 | 0.21 | 11 / 0.16 | 0.41 | 1.4 | 40/0.12 | 0.41 | 2.45 |
| 22 | 0.33 | 17 / 0.16 | 0.41 | 1.55 | 42/0.12 | 0.41 | 2.6 |
| 20 | 0.52 | 21 / 0.18 | 0.41 | 1.75 | 16/0.12 | 0.41 | 2.8 |
| 18 | 0.82 | 41 / 0.16 | 0.41 | 2 | 50/0.12 | 0.41 | 3.05 |
| 16 | 1.31 | 26 / 0.253 | 0.41 | 2.3 | 57/0.12 | 0.41 | 3.35 |
