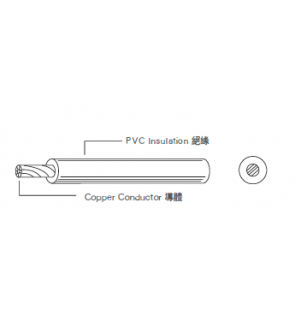

Solid or Stranded, Tinned or Bare
Copper Conductor
Rating: 80℃, 300V
Application:
Internal Wiring of Electrical & Electronic
Equipment Internal Wiring of Medical
or Dental Equipment Size Range: 30 - 4/0 AWG
Standard: UL 62, Subject 758
| Conductor | Insulation | |||
|---|---|---|---|---|
| AWG Size | Sectional Area (mm2) | Construction (No./mm) | Nom. Thick. (mm) | Nom. Diam. (mm) |
| 30 | 0.05 | 11 / 0.08 1 / 0.26 | 0.33 | 0.97 |
| 28 | 0.08 | 7 / 0.127 1 / 0.32 | 0.33 | 1.04 |
| 26 | 0.13 | 7 / 0.16 1 / 0.41 | 0.33 | 1.14 |
| 24 | 0.21 | 11 / 0.16 1 / 0.51 | 0.33 | 1.27 |
| 22 | 0.33 | 17 / 0.16 1 / 0.64 | 0.33 | 1.42 |
| 20 | 0.52 | 21 / 0.18 1 / 0.81 | 0.33 | 1.60 |
| 18 | 0.82 | 41 / 0.16 1 / 1.02 | 0.33 | 1.87 |
| 16 | 1.31 | 26 / 0.253 1 / 1.29 | 0.33 | 2.19 |
