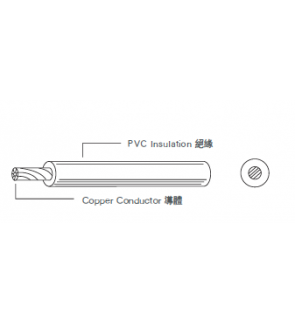

Standed, Tinned or Bare Copper Conductor
Rating: 105℃, 600V
Application:
Internal Wiring of Indoor or outdoor
Refrigerating Equipment
Size Range: 20-10AWG
Standard: UL 62, Subject 758
| Conductor | Insulation | |||
|---|---|---|---|---|
| AWG Size | Sectional Area (mm2) | Construction (No./mm) | Nom. Thick. (mm) | Nom. Diam. (mm) |
| 20 | 0.52 | 21 / 0.18 | 1.52 | 4.20 |
| 18 | 0.82 | 41 / 0.16 | 1.52 | 4.40 |
| 16 | 1.31 | 26 / 0.253 | 1.52 | 4.80 |
| 14 | 2.08 | 41 / 0.253 | 1.52 | 5.15 |
| 12 | 3.31 | 65 / 0.253 | 1.52 | 5.60 |
| 10 | 5.26 | 104 / 0.253 | 1.52 | 6.20 |
