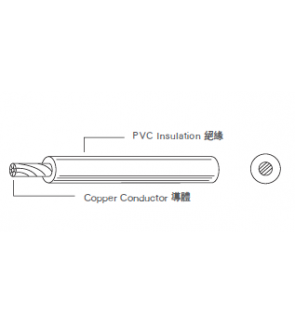

Solid or Stranded, Tinned or Bare Copper Conductor
Rating: 80℃, 300V
Application:
Internal Wiring or Electrical & Electronic Equipment
Size Range:
(UL) 32- 16 AWG (UL 1007),
(CSA) 28- 14 AWG
Standard: UL 62, Subject 758 / CSAC22.2 No. 16
| Conductor | Insulation | |||
|---|---|---|---|---|
| AWG Size | Sectional Area (mm2) | Construction (No./mm) | Nom. Thick. (mm) | Nom. Diam. (mm) |
| 32 | 0.032 | 7 / 0.08 1 / 0.20 | 0.38 | 1.00 |
| 30 | 0.050 | 11 / 0.08 1 / 0.26 | 0.38 | 1.10 |
| 28 | 0.080 | 7 / 0.127 1 / 0.32 | 0.38 | 1.20 |
| 26 | 0.130 | 7 / 0.16 1 / 0.41 | 0.38 | 1.30 |
| 24 | 0.210 | 11 / 0.16 1 / 0.51 | 0.38 | 1.40 |
| 22 | 0.330 | 17 / 0.16 1 / 0.64 | 0.38 | 1.55 |
| 20 | 0.520 | 21 / 0.18 1 / 0.81 | 0.38 | 1.75 |
| 18 | 0.824 | 41 / 0.16 1 / 1.02 | 0.38 | 2.00 |
| 16 | 1.310 | 26 / 0.253 1 / 1.29 | 0.38 | 2.35 |
