UL 21395 (105℃, 300V)
Solid or Stranded, Tinned or Bare
Copper Conductor
Standard: UL 62, Subject 758
Rating: 105℃, 300V

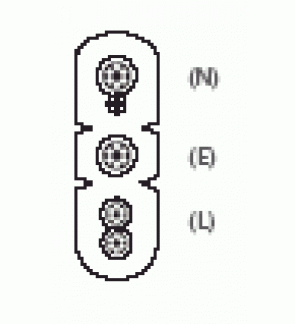

Application: PVC Jacketed Flat Parallel
Cord for LCDI Devices.
Size Range: 18-10 AWG
Conductor Insulation Jacket
AWG Size Sectional Area (mm2) Construction (No./mm) Average Insulation Thickness(mm) Min. Insulation Thickness (mm) ±0.05 Average Insulation Thickness (Live / Neutral) (mm) Average Insulation Thickness (Earth) (mm) Min. Insulation Thickness (Live / Neutral) (mm) Min. Insulation Thickness (Earth) (mm) ±0.08 x ±0.25mm
#18/2C+ 0.824 41 / 0.160 0.38 0.33 2.05 0.89 0.38 0.76 0.33 4.0x12.0
#26/1C+ 0.130 7 / 0.160 0.38 0.33 1.35 0.89 0.38 0.76 0.33 4.0x12.0
#21/2C 0.410 21 / 0.160 0.38 0.33 1.75 0.89 0.38 0.76 0.33 4.0x12.0
#16/2C+ 1.310 26 / 0.253 0.38 0.33 2.35 0.89 0.38 0.76 0.33 4.3x13.0
#26/1C+ 0.130 7 / 0.160 0.38 0.33 1.35 0.89 0.38 0.76 0.33 4.3x13.0
#19/2C 0.620 33 / 0.160 0.38 0.33 1.95 0.89 0.38 0.76 0.33 4.3x13.0
#14/2C+ 2.080 41 / 0.253 0.38 0.33 2.75 1.40 0.38 1.20 0.33 5.60x15.20
#26/1C+ 0.130 7 / 0.160 0.38 0.33 1.35 1.40 0.38 1.20 0.33 5.60x15.20
#17/2C 1.040 21 / 0.253 0.38 0.33 2.20 1.40 0.38 1.20 0.33 5.60x15.20
#12/2C+ 3.310 65 / 0.253 0.38 0.33 3.20 1.78 0.38 1.52 0.33 6.80x17.60
#26/1C+ 0.130 7 / 0.160 0.38 0.33 1.35 1.78 0.38 1.52 0.33 6.80x17.60
#15//2C 1.650 33 / 0.253 0.38 0.33 2.55 1.78 0.38 1.52 0.33 6.80x17.60
#10/2C+ 5.260 104 / 0.253 0.38 0.33 3.85 2.03 0.38 1.73 0.33 8.00x19.80
#26/1C+ 0.130 7 / 0.160 0.38 0.33 1.35 2.03 0.38 1.73 0.33 8.00x19.80
#13/2C 2.620 53 / 0.253 0.38 0.33 3.00 2.03 0.38 1.73 0.33 8.00x19.80
Marking:E114082 AWM 21395 E114082 xxAWG/2C 300V 105℃ FT2 CHAU'S
