Rating: 60℃, 300V

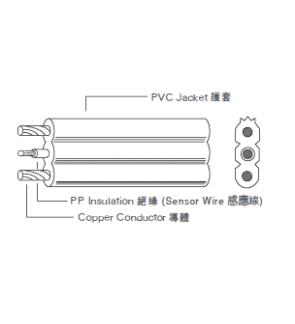

2 Conductors with a 24 AWG Sensor Wire
Application:
Power Supply Cord for Appliances
Employing an Attachment Plug with a
Water Detection Circuit
Standard: UL62
| No. of Conductor | Conductor | Insulation | |||
|---|---|---|---|---|---|
| AWG Size | Sectional Area (mm2) | Construction (No./mm) | Nom. Thick. (mm) | Nom. Diam. (mm) | |
| 2 | 18 | 0.824 | 41 / 0.16 | 1.14 | 3.50 x 7.75 |
| 2 | 16 | 1.310 | 65 / 0.16 | 1.14 | 3.75 x 8.35 |
