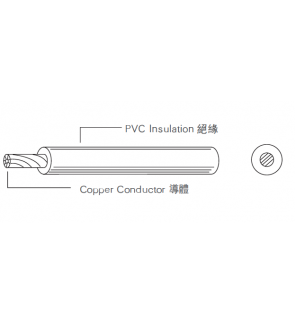

Solid or Standed, Tinned or Bare Copper Conductor
Rating: 105℃, 300V
Application:
Internal Wiring of Electrical Appliance
Size Range: 30-16 AWG
Standard: UL 62, Subject 758
| Conductor | Insulation | |||
|---|---|---|---|---|
| AWG Size | Sectional Area (mm2) | Construction (No./mm) | Nom. Thick. (mm) | Nom. Diam. (mm) |
| 30 | 0.050 | 11 / 0.08 | 0.38 | 1.15 |
| 28 | 0.080 | 7 / 0.127 | 0.38 | 1.20 |
| 26 | 0.130 | 7 / 0.160 | 0.38 | 1.30 |
| 24 | 0.210 | 11 / 0.160 | 0.38 | 1.45 |
| 22 | 0.330 | 17 / 0.160 | 0.38 | 1.60 |
| 20 | 0.520 | 21 / 0.180 | 0.38 | 1.80 |
| 18 | 0.824 | 41 / 0.160 | 0.38 | 2.00 |
| 16 | 1.310 | 26 / 0.253 | 0.38 | 2.30 |
