UL 1571 - SHIELDED WIRE

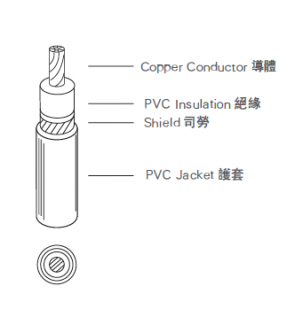

Copper Conductor

RatingL 80℃, 30V

PVC /PE Insulation

Copper Sprial Wrap 95% Coverage

PVC Jacket

Application:
For use with Commuinication and Signal Control System

Size Range: 32-18 AWG


Conductor Insulation Shield Jacket
AWG Size Sectional Area (mm2) Construction (No./mm) Nom. Thick. (mm) Nom. Diam. (mm)   Nom. Thick (mm) Nom. Diam. (mm)
32 0.030 7 / 0.08 0.13 0.55 18 / 0.12 0.15 1.10
30 0.050 11 / 0.08 0.13 0.60 19 / 0.12 0.15 1.15
28 0.080 7 / 0.127 0.13 0.70 20 / 0.12 0.15 1.25
26 0.130 7 / 0.16 0.13 0.80 23 / 0.12 0.15 1.35
24 0.210 11 / 0.16 0.13 1.00 32 / 0.12 0.15 1.65
22 0.330 17 / 0.16 0.13 1.15 33 / 0.12 0.15 1.80
20 0.519 21 / 0.18 0.13 1.50 37 / 0.12 0.15 2.00
18 0.824 41 / 0.16 0.13 1.60 43 / 0.12 0.15 2.25
Marking:E114082 AWM 1571 xx AWG 30V 80℃ FT2 CHAU'S
