Rating: 60℃, 300V
Standard: UL 62, Subject 758
Size Range: 30-16 AWG

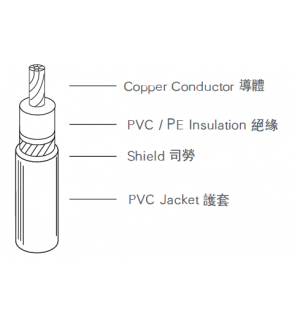

| Conductor | Insulation | Shield | Jacket | ||||
|---|---|---|---|---|---|---|---|
| AWG Size | Sectional Area (mm2) | Construction (No./mm) | Nom. Thick. (mm) | Nom. Diam. (mm) | Nom. Thick (mm) | Nom. Diam. (mm) | |
| 30 | 0.05 | 11 / 0.08 | 0.58 | 1.50 | 41/0.12 | 0.30 | 2.55 |
| 28 | 0.08 | 7 / 0.127 | 0.58 | 1.60 | 43/0.12 | 0.30 | 2.65 |
| 26 | 0.13 | 7 / 0.16 | 0.58 | 1.70 | 45/0.12 | 0.30 | 2.75 |
| 24 | 0.21 | 11 / 0.16 | 0.58 | 1.85 | 48/0.12 | 0.30 | 2.90 |
| 22 | 0.33 | 17 / 0.16 | 0.58 | 2.00 | 53/0.12 | 0.30 | 3.05 |
| 20 | 0.519 | 21 / 0.18 | 0.58 | 2.15 | 56/0.12 | 0.30 | 3.20 |
| 18 | 0.824 | 41 / 0.16 | 0.58 | 2.40 | 62/0.12 | 0.30 | 3.45 |
| 16 | 1.31 | 26 / 0.253 | 0.58 | 2.70 | 67/0.12 | 0.30 | 3.75 |
