Solid or Stranded, Tinned or Bare

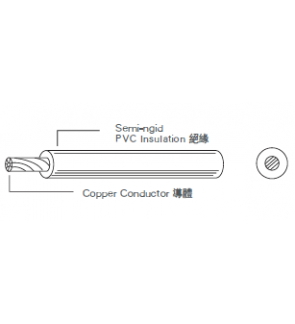

Copper Conductor
Rating: 80℃, 300V
Semi-rigid PVC Insulation
Application:
Internal Wiring of Electrical & Electronic
Equipment Wiring
Size Range: 30-16AWG
Standard: UL 62, Subject 758 / CSA C22.2 No. 210
| Conductor | Insulation | |||
|---|---|---|---|---|
| AWG Size | Sectional Area (mm2) | Construction (No./mm) | Nom. Thick. (mm) | Nom. Diam. (mm) |
| 30 | 0.05 | 11 / 0.08 / 1 / 0.26 | 0.23 | 0.80 |
| 28 | 0.08 | 7 / 0.127 1 / 0.32 | 0.23 | 0.85 |
| 26 | 0.13 | 7 / 0.16 1 / 0.41 | 0.23 | 0.95 |
| 24 | 0.21 | 11 / 0.16 1 / 0.51 | 0.23 | 1.10 |
| 22 | 0.33 | 17 / 0.16 1 / 0.64 | 0.23 | 1.25 |
| 20 | 0.52 | 21 / 0.18 1 / 0.81 | 0.23 | 1.45 |
| 18 | 0.82 | 41 / 0.16 1 / 1.02 | 0.23 | 1.70 |
| 16 | 1.31 | 26 / 0.253 1 / 1.29 | 0.23 | 1.95 |
