Rating: 60℃ / 75℃ / 80℃ / 90℃ / 105℃, 300V
Application:
Low Voltage Outdoor
Application in Lighting Fixtures
Size Range: 10-18 AWG
Standard: UL 62

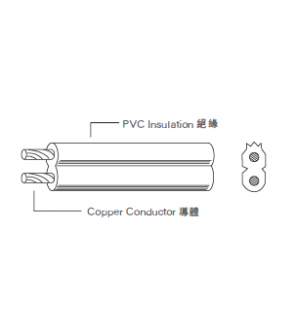

| No. of Conductor | Conductor | Insulation | |||
|---|---|---|---|---|---|
| AWG Size | Sectional Area (mm2) | Construction (No./mm) | Nom. Thick. (mm) | Nom. Diam. (mm) | |
| 2 | 18 | 0.824 | 41 / 0.160 | 1.52 | 4.2 x 8.4 |
| 2 | 16 | 1.310 | 26 / 0.253 | 1.52 | 4.5 x 9.0 |
