SRDT

Rating:

60℃ / 90℃, 300V

Application:
For Dryer

Standard: UL 62

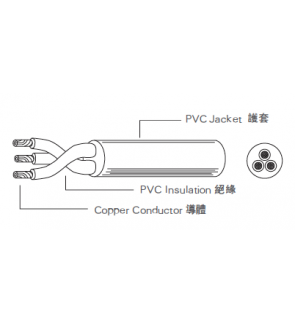

No. of Conductor Conductor Insulation Jacket
  AWG Size Sectional Area (mm2) Construction (No./mm) Nom. Thick. (mm) Nom. Diam. (mm) Nom. Thick (mm) Nom. Diam. (mm)
3 10 5.26 41 / 0.401 1.14 5.4 1.52 14.80
3 8 8.37 66 / 0.401 1.14 6.2 1.52 16.60
3 6 13.30 41 / 0.640 1.14 7.3 1.52 19.00
4 10 5.26 41 / 0.401 1.14 5.4 1.52 16.50
4 8 8.37 66 / 0.401 1.14 6.2 1.52 18.40
4 6 13.30 41 / 0.640 1.14 7.3 1.52 21.10
Marking:(UL) E11425 SRDT 4/C xxAWG(xxmm2)300V 60℃ FT1 C
(UL)DRT'4/C xxAWG(xxmm2)300V 60℃ FT2 CHAU'S
Remark : Combination of size conductor is allowed. The parallel construction is acceptable
