Rating: 60℃ / 105℃, 300V

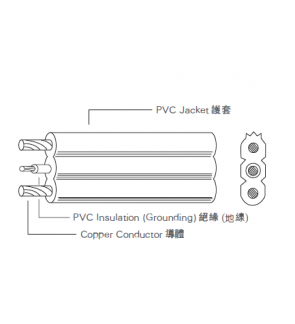

3- Wire with Green Grounding Conductor
Straight or Coiled
Application:
Same as SPT-1 but Heavier Construction
Standard: UL 62 / C22.2 No. 49
No. of Conductor | Conductor | Insulation | Jacket | ||||
---|---|---|---|---|---|---|---|
AWG Size | Sectional Area (mm2) | Construction (No./mm) | Nom. Thick. (mm) | Nom. Diam. (mm) | Nom. Thick (mm) | Nom. Diam. (mm) | |

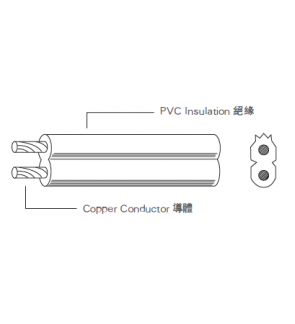

2 | 18 | 0.82 | 41 / 0.16 | - | - | 1.4 | 3.50 x 6.95 |
2 | 16 | 1.31 | 26 / 0.253 | - | - | 1.4 | 3.75 x 7.55 |
3 | 18 | 0.82 | 41 / 0.16 | 0.38 | 2.15 | 1.4 | 3.60 x 9.50 |
3 | 16 | 1.31 | 26 / 0.253 | 0.38 | 2.40 | 1.4 | 4.20x10.60 |
