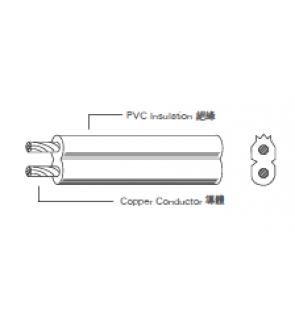

SPT-1/SPT-1W

Rating :
60℃/105℃  300V
3 Wire with Green Grounding Conductor Straight or Coiled

Application:
Light Duty Cord for Pendant or Protable Use

Standard :
UL 62/ C22.2 No. 49

No. of Conductor Conductor Insulation Jacket
  AWG Size Sectional Area (mm2) Construction (No./mm) Nom. Thick. (mm) Nom. Diam. (mm) Nom. Thick (mm) Nom. Diam. (mm)
2 20 0.519 21/0.18 0.38 - 0.76 2.62x4.80
2 18 0.824 41/0.16 0.38 - 0.76 2.65x6.10
3 20 0.519 21/0.18 0.38 1.85 0.76 2.70x5.35
3 18 0.824 41/0.16 0.38 2.15 0.76 3.00x8.70
Marking:Marking (U L) C (U L)E 114235 SP T 1 3 C xxAWG(xxmm2)300V 105℃ FT1 CHE E N’CO N DUCTO R FO R GROUNDING ONLY CHAU’S
