Rating: 60℃ / 75℃ / 90℃ / 105℃, 300V
Standard: UL 62 /CSA C22.2 No.49
| No. of Conductor | Conductor | Insulation | Jacket | ||||
|---|---|---|---|---|---|---|---|
| AWG Size | Sectional Area (mm2) | Construction (No./mm) | Nom. Thick. (mm) | Nom. Diam. (mm) | Nom. Thick (mm) | Nom. Diam. (mm) | |

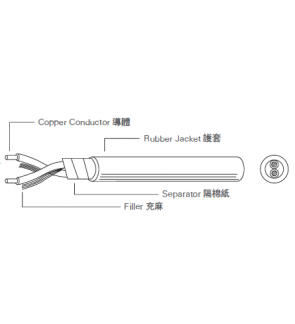

| 2 | 18 | 0.824 | 41/0.160 | 0.76 | 2.80 | 1.52 | 8.80 |
| 2 | 16 | 1.310 | 65/0.160 | 0.76 | 3.05 | 1.52 | 9.37 |
| 2 | 14 | 2.080 | 41/0.253 | 1.14 | 4.25 | 2.03 | 12.85 |

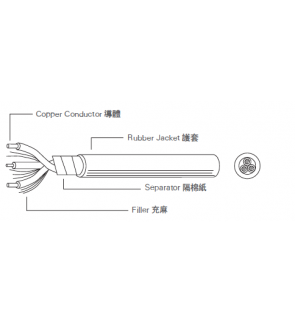

| 3 | 18 | 0.824 | 41/0.160 | 0.76 | 2.80 | 1.52 | 9.40 |
| 3 | 16 | 1.310 | 65/0.160 | 0.76 | 3.05 | 1.52 | 9.90 |
| 3 | 14 | 2.080 | 41/0.253 | 1.14 | 4.25 | 2.03 | 13.50 |
