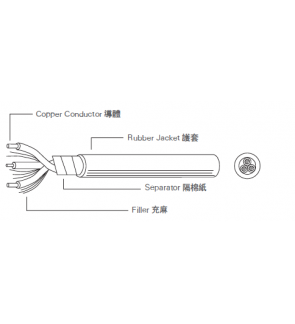

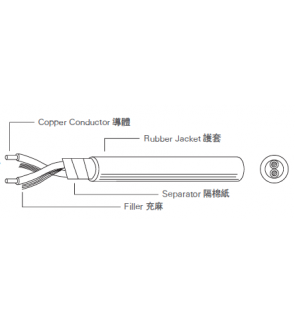

Rating: 60℃ / 75℃ / 90℃ / 105℃, 300V
Standard: UL 62
| No. of Conductor | Conductor | Insulation | Jacket | ||||
|---|---|---|---|---|---|---|---|
| AWG Size | Sectional Area (mm2) | Construction (No./mm) | Nom. Thick. (mm) | Nom. Diam. (mm) | Nom. Thick (mm) | Nom. Diam. (mm) | |
| 2 | 18 | 0.824 | 41 / 0.160 | 0.76 | 2.85 | 0.76 | 7.35 |
| 2 | 16 | 1.310 | 26 / 0.253 | 0.76 | 3.10 | 0.76 | 7.95 |
| 2 | 14 | 2.080 | 41 / 0.253 | 0.76 | 3.50 | 0.76 | 8.70 |
| 2 | 12 | 3.310 | 65 / 0.253 | 0.76 | 4.00 | 1.14 | 10.50 |
| 3 | 18 | 0.824 | 41 / 0.160 | 0.76 | 2.85 | 0.76 | 7.80 |
| 3 | 16 | 1.310 | 26 / 0.253 | 0.76 | 3.10 | 0.76 | 8.40 |
| 3 | 14 | 2.080 | 41 / 0.253 | 0.76 | 3.50 | 0.76 | 9.30 |
| 3 | 12 | 3.310 | 65 / 0.253 | 0.76 | 4.00 | 1.14 | 11.00 |
| 4 | 18 | 0.824 | 41 / 0.160 | 0.76 | 2.85 | 0.76 | 8.60 |
| 4 | 16 | 1.310 | 26 / 0.253 | 0.76 | 3.10 | 0.76 | 9.20 |
| 4 | 14 | 2.080 | 41 / 0.253 | 0.76 | 3.50 | 0.76 | 10.30 |
| 4 | 12 | 3.310 | 65 / 0.253 | 0.76 | 4.00 | 1.14 | 12.10 |
| 5 | 18 | 0.824 | 41 / 0.160 | 0.76 | 2.85 | 0.76 | 9.30 |
| 5 | 16 | 1.310 | 26 / 0.253 | 0.76 | 3.10 | 0.76 | 10.10 |
| 5 | 14 | 2.080 | 41 / 0.253 | 0.76 | 3.50 | 0.76 | 11.10 |
| 5 | 12 | 3.310 | 65 / 0.253 | 0.76 | 4.00 | 1.14 | 13.25 |
