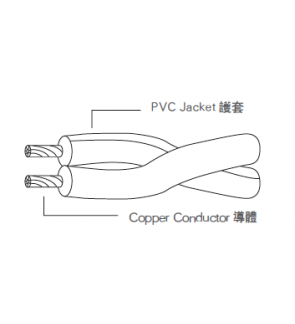

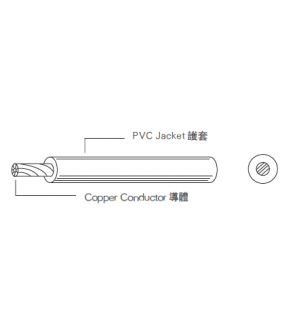

Standard Tinned or Bare Copper Conductor
PVC Jacket
Avaliable in Single, Twisted and Parallel Form
For Light Duty Power Supply Applications
Standard: UL 62
| Style | Temp. | Voltage | Conductor | Insulation | |||
|---|---|---|---|---|---|---|---|
| AWG Size | Sectional Area (mm2) | Construction (No./mm) | Nom. Thick. (mm) | Nom. Diam. (mm) | |||
| Single | 105℃ | 300V | 22 | 0.324 | 17 / 0.16 | 0.76 | 2.35 |
| Single | 105℃ | 300V | 20 | 0.519 | 21 / 0.18 | 0.76 | 2.55 |
| Single | 105℃ | 300V | 18 | 0.824 | 41 / 0.16 | 0.76 | 2.80 |
| Twisted | 105℃ | 300V | 22 | 0.324 | 17 / 0.16 | 0.76 | 2.35 |
| Twisted | 105℃ | 300V | 20 | 0.519 | 21 / 0.18 | 0.76 | 2.55 |
| Twisted | 105℃ | 300V | 18 | 0.824 | 41 / 0.16 | 0.76 | 2.80 |
