UL 20251 UL 20097 TELECOMMUNICATION CORD
MATERIAL
Jacket: PVC
Insulation: Polyester Elastomer (20097)
Polypropylen (20251)
Conductor:
32AWG - tinsel
Other - copper

SPECIFICATION
Conductor resistance: < 2.0Ω/m
Insulation resistance: >2.5MΩ.1k/t
Dielectric strength: 1500VAC
Plug pull force: 50N
Terminal crimping strength: 4.4lbs

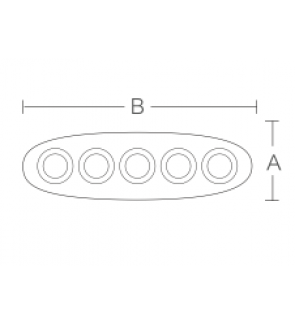

No. of Conductor Conductor Insulation Jacket Awg
  Construction (No./mm) Nom. Thick. (mm) Nom. Diam. (mm) Nom. Thick (mm) Nom. Diam. (mm)
2 Tinsel 0.18 0.98 0.51 2.5 x 5.0 32
4 Tinsel 0.18 0.98 0.51 2.5 x 5.0 32
6 Tinsel 0.18 0.98 0.51 2.5 x 7.0 32
8 Tinsel 0.18 0.98 0.51 2.5 x 9.0 32
10 Tinsel 0.18 0.98 0.51 2.5 x 11.0 26
2 7/ 0.16mm 0.18 0.98 0.51 2.5 x 5.0 26
4 7/ 0.16mm 0.18 0.98 0.51 2.5 x 5.0 26
6 7/ 0.16mm 0.18 0.98 0.51 2.5 x 7.0 26
8 7/ 0.16mm 0.18 0.98 0.51 2.5 x 9.0 26
10 7/ 0.16mm 0.18 0.98 0.51 2.5 x 11.0 26
